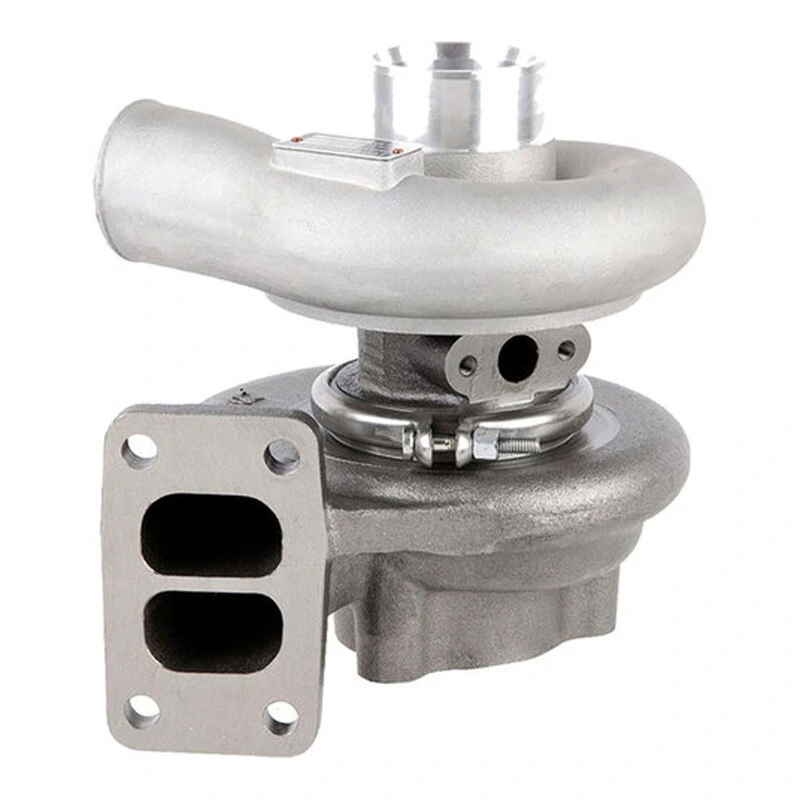

Mitsubishi TD06H-16M turbocharger for CAT 3066 / C6.4 engines in 320C / 320D / 323D class excavators. Two builds are sold: 205-6741 and 5I-8018 most often pair with 49179-02300 (also 279-7860); 287-0049 pairs with 49179-02910 and is commonly described as TD06H-16M-10.0; 49179-02340 appears on 3066 / 320 units. Confirm the number on the removed unit and the engine serial before ordering. Housing layout: snail-type aluminium compressor housing, cast iron turbine housing with a rectangular two-port exhaust flange, V-band clamp.
Nameplate, OEM number and working conditions — checked against your machine, confirmed in writing before you pay.
Photos and video of the actual part, packed and labelled, before it leaves. What you see is what ships.
Send the hour-meter reading and we log the service interval — you get a message before the next one is due.
Nothing leaves Xi’an until you reply "ok". You approve, then we ship — not the other way round.
| MOQ | 1 pc |
| Type | Turbocharger assembly |
| Engine | CAT 3066 / C6.4 |
| Shipping | Rail / Sea / Air |
| Warranty | 12 Months |
| Application | CAT 320C / 320D / 323D class |
| Turbo model | TD06H-16M (287-0049 group is often listed as TD06H-16M-10.0) |
| Common pairings | 205-6741 & 5I-8018 ~ 49179-02300 (+279-7860); 287-0049 ~ 49179-02910 (+310-9617); 49179-02340 for 3066/320 |
| Main references | 205-6741 / 5I-8018 / 287-0049 |
| Material | Aluminium compressor housing, cast iron turbine housing, steel shaft |
| Warranty | 12 Months |
| Part Number | Machine Model | Type | Availability |
|---|---|---|---|
| TURBO-C6.4 | 3066 / C6.4 | Replacement part | In Stock |
| 205-6741 | 3066 / C6.4 | Replacement part | In Stock |
| 2056741 | 3066 / C6.4 | Replacement part | In Stock |
| 5I-8018 | 3066 / C6.4 | Replacement part | In Stock |
| 5I8018 | 3066 / C6.4 | Replacement part | In Stock |
| 279-7860 | 3066 / C6.4 | Replacement part | In Stock |
| 287-0049 | 3066 / C6.4 | Replacement part | In Stock |
| 2870049 | 3066 / C6.4 | Replacement part | In Stock |
| 310-9617 | 3066 / C6.4 | Replacement part | In Stock |
| 49179-02300 | 3066 / C6.4 | Replacement part | In Stock |
| 49179-02340 | 3066 / C6.4 | Replacement part | In Stock |
| 49179-02910 | 3066 / C6.4 | Replacement part | In Stock |
This is a partial reference. Send your part number or machine model — we source and confirm it for you.
| Original (OEM) | TURBO-C6.4 / 205-6741 / 2056741 / 5I-8018 / 5I8018 / 279-7860 / 287-0049 / 2870049 / 310-9617 / 49179-02300 / 49179-02340 / 49179-02910 |
| Brand No. | TURBO-C6.4 |
| Cross Reference | 205-6741 |
| Cross Reference | 2056741 |
| Cross Reference | 5I-8018 |
| Cross Reference | 5I8018 |
| Cross Reference | 279-7860 |
| Cross Reference | 2797860 |
| Cross Reference | 287-0049 |
| Cross Reference | 2870049 |
| Cross Reference | 310-9617 |
| Cross Reference | 49179-02300 |
| Cross Reference | 4917902300 |
| Cross Reference | 49179-02340 |
| Cross Reference | 4917902340 |
| Cross Reference | 49179-02910 |
| Cross Reference | 4917902910 |
| Cross Reference | TD06H-16M |
| Cross Reference | TD06H-16M-10.0 |
| Concern | Impact | How we help |
|---|---|---|
| Wrong part model | Installation failure, extra cost | Confirmed by number, model and photos before shipment. |
| Unclear part number | Delays in sourcing | We identify the part from whatever info you have. |
| Poor quality | Downtime and complaints | Stable replacement elements; every unit checked. |
| Slow response | Project delays | Reply within 24 hours. |
| Many suppliers | Complex procurement, higher cost | Wide coverage, mixed orders from one source. |
| Shipping risk | Damage or late arrival | Export packing and the right shipping method. |
| High MOQ | Financial risk | Flexible quantity — start small. |
| No after-sales | Problems unresolved | We stay in touch after delivery. |
Send part number, machine model or photo — whatever you have.
We confirm the correct part from your number, model and photos.
You receive price, availability and specifications.
We arrange preparation on the agreed terms.
We check the parts and send photos before dispatch.
Express, air, rail or sea — with tracking after dispatch.
We supply OEM-supplier, branded and quality aftermarket replacement parts built to match OEM specifications. OEM numbers are shown for reference only.
Contact us to confirm machine compatibility — send your machine model and serial number, and we verify fitment before you pay.
3-12 months depending on part type; common-rail injectors 3-6 months subject to correct installation.
Parts are sourced to order and consolidated in Xi\u2019an; consolidation and dispatch usually 2-5 business days depending on availability, then 7-15 days to most countries via DHL / FedEx / sea / rail. Confirmed per line in the quotation.
Yes — we send photos and videos of your part for approval before dispatch.
